BAKOVISION Mesh LED Curtain Display,Flexible Electronic Outdoor SMD Led Screen
Description

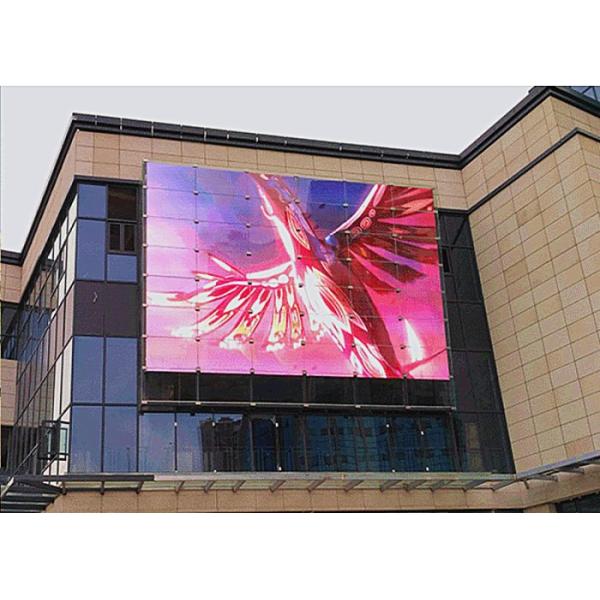

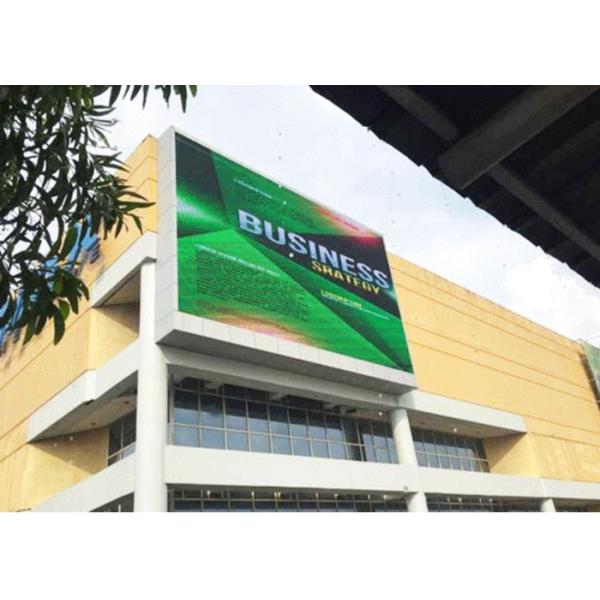

All-weather brightness adjustment range up to IP65 protection for any complex environment. Its high transparency helps to withstand strong winds, reduces the thickness and weight of the support structure design, and greatly improves the operation and maintenance of the engineering installation. Suitable for outdoor advertising, shopping malls, plazas, etc.
Advantage
[Lightweight and ultra-thin] Light weight, easy to install and maintain, no need to support structural reinforcement costs, high efficiency.
[High Passivity] Up to 73% transparency, making the glass curtain wall a realistic video wall for outdoor viewing outside the field.
[All weather] Trouble-free operation at temperatures -30 °C to 60 °C, aerodynamic wind-resistant design to withstand storms and typhoons.
[Product Certification] CE and LCC certification to meet the safety requirements of electromagnetic radiation and low-voltage electricity, to meet the safe use standards for electronic products.
[Low power consumption] Using high-brightness LED lights, high conversion efficiency and PFC function power supply, reducing power consumption by more than half compared with conventional power supplies.
[No steel structure] When installed on the wall of a building without steel structure, it can reduce the weight of steel structure by about 50kg per square meter.
[Front maintenance] It can be installed before and after, greatly improving various adaptive conditions for on-site installation.
| Physical Pitch | 25mm(H),35mm(V) |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 1120dot/㎡ |
| Unit Size(W×H) | ＞1500×250mm |
| Weight | 10.6kg/㎡ |
| Processing | 16bit |
| Colours | 281trillion |
| Average Power Consumption | 115w/㎡ |
| Max Power Conmption | 345w/㎡ |
| Brightness | ＞6500nit |
| Refresh Rate | ＞3840Hz |
| Expected Lifetime | 100000 Hours |
| Servicing | Front/Rear |
| IP Rating | IP67(Front/Rear) |
| Operating Temp/Humdity | -30°~60°C/10%~90% |
| Storage Temp/Humdity | -40°~85°C/10%~95% |
| Certification | CE,ETL,CCC,FCC |
