Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

Name: Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65
Brand: BAKO VISION
Price: 1 USD

China Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65 wholesale

Brand Name : BAKO VISION

Model Number : BOF-F

Certification : CCC,CE,ETL,RoHS

Place of Origin : China

MOQ : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000sqms/month

Delivery Time : 25days

Packaging Details : Flight case,Plywooden case

Cabinet Material : Steel/Aluminum

Weight(m²） : 65/45

Colors : 281 trillion

Warranty : 2 years

Average Power Consumption : 360W/m²

Contrast Ratio : 4000:1

Servicing : Front

Life Span : 100,000hours

Price : Negotiation

Contact Now

TECHNICAL SPECIFICATIONS

4.81mm 43,264/m² >6500nit IP65

Pitch Density Brightness Weather Rating

281trillion 45kg/m² m 16bit 360/900w

Colors Weight Gray Scale Power Avg/Max

	BOF-F-4	BOF-F-5	BOF-F-6	BOF-F-8	BOF-F-10
Physical Pitch	4 mm	5.95 mm	6.67 mm	8 mm	8 mm
Pixel Configuration	SMD 2727	SMD 2727	SMD 2727	SMD 3535	SMD 3535
Pixel Density	43,264 pixels/m²	28,246 pixels/m²	22,500 pixels/m²	15,625 pixels/m²	10,000 pixels/m²
Module Dimensions (W × H) (mm)	250 × 250	250 × 250	320 × 320	320 × 160	320 × 160
Panel Dimensions (mm)	1000 × 1000 × 150	500 × 1000 × 150	1280 × 960 × 150	960 × 960 × 150	1280 × 960 × 150
NO .of Modules Per Panel (W × H)	4 × 4	2 × 4	4 × 3	3 × 6	4 × 6
Physical Resolution of Module (W × H)	52 × 52	52 × 52	48 × 48	32 × 32	32 × 32
Physical Resolution of Panel (W × H)	208 × 208	84 × 168	192 × 144	120 × 120	96 × 96
Panel Material	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum
Weight(m²)	65/45	65/45	65/45	65/45	65/45
Processing	16 bit	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1
Average Power Consumption	360 W/m²	36 W/m²	360 W/m²	360 W/m²	360 W/m²
Max Power Consumption	900 W/ m²	900 W/ m²	900 W/ m²	900 W/ m²	900 W/ m²
Average Power After Energy Saving	-	-	90 W/ m²	90 W/ m²	90 W/ m²
Max Power After Energy Saving	-	-	230 W/ m²	230 W/ m²	230 W/ m²
Refresh Rate	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz	＞1,920 Hz
Brightness	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits
Vertical Viewing Angle	160°	160°	160°	160°	160°
Horizontal Viewing angle	140°	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs
Servicing	Rear	Rear	Rear	Rear	Rear
IP Rating	IP 65	IP 65	IP 65	IP 65	IP 65
Operating Temp/Humidity	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%
Storage Temp/Humidity	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%	-20℃-50℃ / 10%-90%
Scan Method	1/13 Scan	1/7 Scan	1/10 Scan	1/4 Scan	1/2 Scan

BF Series Front Service

Multifunctional Module Buckle

● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

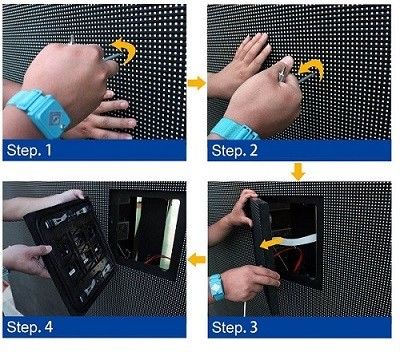

Fast Installation and Easy Maintenance

● Fast lock system design guarantees a quick and easy installation

● Mechanical front access

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

Outdoor Rated

●Brightness adjustable for day and night

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

● IP65 Rating,Durable LED for 7/24 work mode

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

● Cutting edge"cold display" technology,60% power lower than normal,50% tempature less than normal

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

Cases

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

After-sales Service

We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

Packaging and Shipping

About Us

LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
